HC ACCESSORY ACCESSORY FEATURES
- High Durability
- Appropriate for Tank and Hopper application
- Designed with Safety Coefficient considerations
MANUAL
- Load cell connection with the Mounting Plate
- Fix the Mounting plate on the surface
- Check the level of the Mounting Plate
- Place the Loading Plate over the Load Cell
- Check the value with a display system
|
 |
|

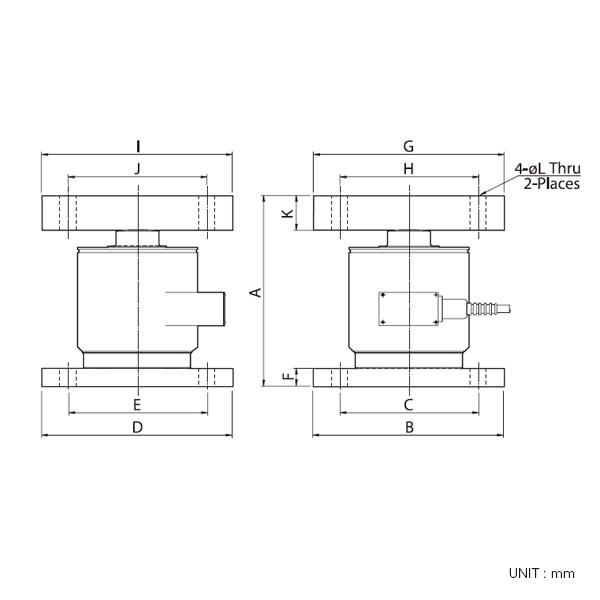

| Capa | A | B | C | D | E | F | G | H | I | J | K | L | | 20tf | 190 | 200 | 150 | 200 | 150 | 15 | 200 | 150 | 200 | 150 | 30 | 14 | | 30tf | 190 | 200 | 150 | 200 | 150 | 15 | 200 | 150 | 200 | 150 | 30 | 14 | | 50tf | 220 | 220 | 160 | 220 | 160 | 20 | 220 | 160 | 220 | 160 | 40 | 19 | | 100tf | 280 | 260 | 200 | 260 | 200 | 30 | 260 | 200 | 260 | 200 | 60 | 23 | | 200tf | 350 | 280 | 200 | 280 | 200 | 40 | 280 | 200 | 280 | 200 | 80 | 27 | |
