BSS Stainless Shear Beam Load Cell

Accessory Assembly TW FEATURES
- Loading bolt type
- Safety structure

MANUAL
- Base, Load Cell, Loading Bolt, Upper are assembled in sequence
- While installing the loadcell the surface level should be checked
- CAUTION
: The Loading Bolt has to be under the Upper Plate

Capa	A	B	C	D	E	F	G	H	I	J	K
500	101.6	127	17.8	115.9~123.9	17.8	180.9	52.3	101.6	101.6	127	M16
1K
2K
3K	101.6	127	23.9	136~144	23.9	215.9	82.5	101.6	101.6	127	M16
5K

Accessory Assembly TWE
FEATURES
- Ball type
- High resolution
- Easy replacement

MANUAL
- Rise the Upper Plate by using the
supporters at both sides and join it
with the Base Plate
- Untie the upper bolt of the supporter
and place the Upper ball cup over
the steel Ball
- Check the level of the load cell

Capa	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q
500	102	127	20	122	20	180.9	152.3	102	127	35	81.1	M16	20	40	4	3.8	3.2
1K
2K
3K	102	127	26	154	24	215.9	184.1	102	127	45	94.3	M16	28	46	5	3.6	3.4
5K

Accessory Assembly TW EXP
FEATURES
- Loading bolt type
- Safety structure

MANUAL
- Base, Load Cell, Loading Bolt, Upper
are assembled in sequence
- While installing the loadcell the
surface level should be checked
- CAUTION
: The Loading Bolt has to be under
the Upper Plate

Capa	A	B	C	D	E	F	G	H	I	J	K	L	M
500	101.6	127	17.8	115.9~123.9	17.8	180.9	52.3	101.6	101.6	127	M16	36	26
1K
2K
3K	101.6	127	23.9	136~144	23.9	215.9	82.5	101.6	101.6	127	M16	36	26
5K

Accessory Assembly TWE EXP
FEATURES
- Ball type
- High resolution
- Easy replacement

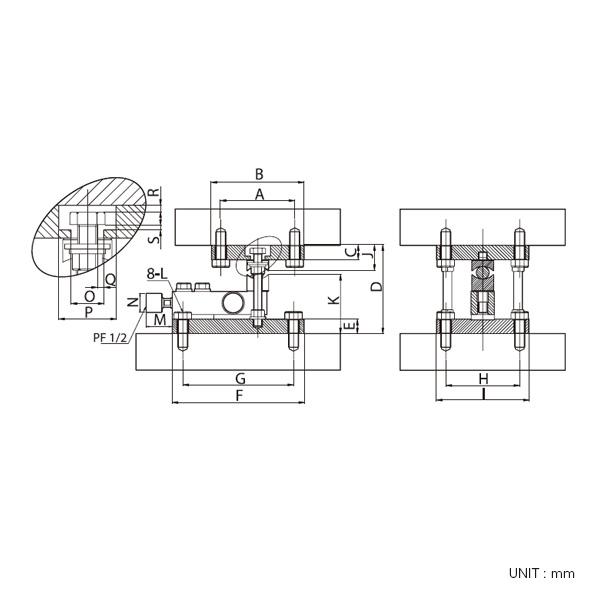

Capa	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q	R	S
500	102	127	20	122	20	181	152	102	127	35	81.1	M16	36	26	20	40	4	3.8	3.2
1K
2K
3K	102	127	26	154	24	216	184	102	127	45	94.3	M16	36	26	28	46	5	3.6	3.4
5K
