|  SPECIFICATION
| MODEL | CTP | | Full straoke Range±Ø | 0.5, 1M | | Output signal | voltage divider (Potentiometer) | | Accuracy | ±0.25% full stroke | | Repeatability | ±0.02% full stroke | | Measuring cable | Ø0.45 stainless steel | | Power supply | 5V, 12V, 24V, DC +5 ~ +24V | | Resistance range | 100Ω ~ 100kΩ | | Min.practical independent linearity | ±0.15%, <300Ω, ±0.075%, ≥300Ω | | Dielectric strength | 1,000V rms | | Min,insulation resistance | 1000MΩ | | Maximun noise | 100Ω | | Max.end voltage | 0.25% of input voltage |  DIMENSION
|

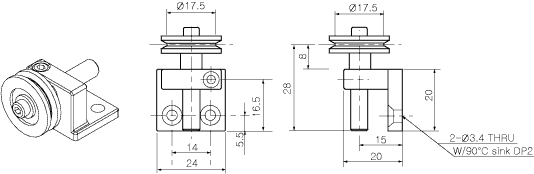

| | OPTION CABLE : CT-1 | |

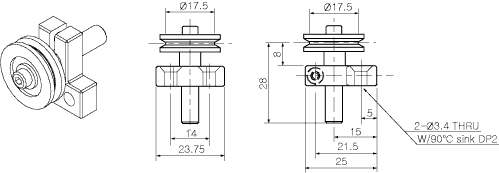

| | OPTION CABLE : CT-2 | |
| |
제품소개
FEATURES
