LVDT-DCT/DCTH Type

  • 배송비배송지역에 따라 책정 (5만원 이상 무료배송)
  • 배송정보평균 3일이내 발송(토,일,공휴일제외)
  • 수량
    -+
전화문의

DESCRIPTION

   This is sensor for measurement of displacement.
 Widely used for aerospace, automotive, chemical industry, civil/structural engineering, metrology & material testing, R & D,hydraulic,etc.

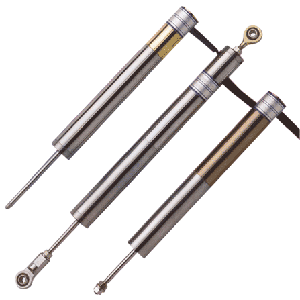

DCT/DCTH   Unguided DC LVDT Displacement Transducers

DCT/DCTH

Stroke

Dim.L

Dim.X

Dim.D1

Dim.D2

ID

Dim.A

Body Weight

Armature Weight

Over  Travel

Inward

Outward

DCT500 ±12.5mm 175mm 43mm 20.6
mm		 Push rod (shown as D2) =4.75mm dia.
Armature (inside transducer) is 6mm dia.		 6.8
mm		 9mm 213gms 17gms 23mm N/A
DCT1000 ±25mm 200mm 69mm 270gms 23gms 22.5mm N/A
DCT2000 ±50mm 317mm 81mm 361gms 37gms 15.8mm N/A
DCT3000 ±75mm 430mm 119mm 497gms 55gms 25mm N/A
DCT4000 ±100mm 472mm 132mm 610gms 71gms 18.6mm N/A
DCT6000 ±150mm 663mm 183mm 852gms 100gms 19mm N/A
DCT8000 ±200mm 854mm 259mm 1250gms 140gms 26.5mm N/A

DCT/DCTH   Captive Guided DC LVDT Displacement Transducer

DCT
DCTH
Stroke
Dim. L
Dim. X
Dim. D1
Dim. A
Weight
Over Travel
Inward
Outward
 DCT500C ±12.5mm 191mm 38mm 20.6mm 23mm 340gms 13mm 10.6mm
 DCT1000C ±25mm 216mm 63mm 398gms 13mm 10mm
 DCT2000C ±50mm 333mm 76mm 511gms 10mm 14mm
 DCT3000C ±75mm 445mm 114mm 625gms 24mm 15mm
 DCT4000C ±100mm 490mm 127mm 767gms 8mm 14mm
 DCT6000C ±150mm 681mm 178mm 1022gms 12.3mm 17.2mm
 DCT8000C ±200mm 871mm 254mm 1448gms 22mm 25mm
 DCT10000C ±250mm 1067mm 305mm 1676gms 34mm 35mm
 DCT15000C ±375mm 1473mm 406mm 2215gms 12.5mm 12.5mm
 DCT18500C ±470mm 1740mm 508mm 2613gms 5mm 33mm

DCT Spring Return DC LVDT Displacement Transducer

DCT
DCTH
Stroke
Dim.L
Dim.X
Dim.D1
Dim.A
Weight
Nom. Spring
Force (max)
Over Trave
Inward
Outward
 DCT500A ±12.5mm 184mm 38mm 20.6mm 9mm 227gms 200gms 1.1mm 13mm
 DCT1000A ±25mm 210mm 63mm 284gms 280gms 2.5mm 10mm
 DCT2000A ±50mm 324mm 75mm 398gms 320gms 8mm 14mm
 DCT3000A ±75mm 442mm 114mm 511gms 650gms 15mm 15mm

 DCT Electrical Specification
Supply Single (must be floating w.r.t. output) OR Supply Dual +20 to +40V dc, 25mA (Output options may change this).
±10 to ±20V, 25mA (Output options may change this)
Standard Output, (in/out) +/-5V and -/+5V(-0%, +5%), selected by connection.
Optional Output, (in/out) 0/10V,10/0, 4/20mA, 20/4mA
Linearity (% error of full scale) ±0.5% standard. 0.25% and 0.1% optional on some models.
Output load (min) (Ohms) 2k (±10V to ±20V), 20k (+20 to +40V)
Output ripple 30mV peak to peak
Output bandwidth (Electrical) 200Hz (flat)
Output Impedance 2 Ohms
Zero Temperature Coefficient ±0.01% F.S./°C
Span Temperature Coefficient ±0.03% F.S./°C
Operating Temperature Range -50°C to +70°C (-10°C to +70°C for 4-20mA output option)
Electrical Termination 2m screened cable (Longer available to order)

DCTH Electrical Specification Using Output 1 Using Output 2
Supply Single (must be floating w.r.t. output) OR Supply Dual +24 to +40V dc, 30mA
±12 to ±20V, 30mA		 +20 to +40V dc, 30mA
±10 to ±20V, 30mA
Standard Output, (in/out) 0/10V, (+0% - 5%) -5V/+5V, (+0% - 5%)
Optional Output with option TM627, (in/out) 10V/0V, (+0% - 5%) +5V/-5V, (+0% - 5%)
Output fluctuation with supply fluctuation 5mV/V typ 1.25mV/V typ
Output load (min) (Ohms) 2k,(10k when supply <26V) 2k
Linearity (% error of full scale) ±0.5% standard. 0.25% and 0.1% optional on some models.
Output ripple 30mV peak to peak
Output bandwidth (Electrical) 200Hz (flat)
Output Impedance 2 Ohms
Zero Temperature Coefficient ±0.01% F.S./°C
Span Temperature Coefficient ±0.03% F.S./°C
Operating Temperature Range -50°C to +80°C
Electrical Termination 2m screened cable (Longer available to order)
