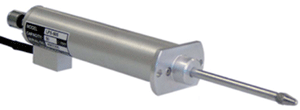

|  SPECIFICATION
| Rated capacity | 5, 10, 30, 50 mm | 80, 100 mm | | Non-linearity | ± 0.2% R.O. | ± 0.4% R.O. | | Hysteresis | ± 0.05% R.O. | ± 0.1% R.O. | | Non-repeatability | ± 0.05% R.O. | ± 0.1% R.O. | | Total resistance(±20%) | 2㏀(stroke5~10mm) 5㏀(stroke30~100mm) | | Temperature range compensated | -10℃ ~ 70℃ | | Temperature range safe | 0℃ ~ 60℃ | | Excitation Voltage | 10V DC | | Cable | φ4 Shield 2m |  MECHANICAL DIMENSION
| 5, 10, 30 mm | CAD도면 |  |
| | 50, 80, 100 mm |  |
| CIRCUIT DIAGRAM |  | | | TIP TYPE | | T-1 (STANDARD) | T-2 (OPTION) | | | | |  DIMENSIONS-mm
| Stroke | A | B | C | | 5 mm | 72 | 57.5 | Useful Stroke +1 / -0 | | 10 mm | 77 | 57.5 | Useful Stroke +1 / -0 | | 30 mm | 117 | 77.5 | Useful Stroke +1 / -0 | | 50 mm | 170 | 110.5 | Useful Stroke +1 / -0 | | 80 mm | 251.5 | 162 | Useful Stroke +1 / -0 | | 100 mm | 271.5 | 162 | Useful Stroke +1 / -0 |  OPTION
| 고정대 |  | ※ Specifications are subject to change without notice  SPECIAL TYPE
|
