DESCRIPTION

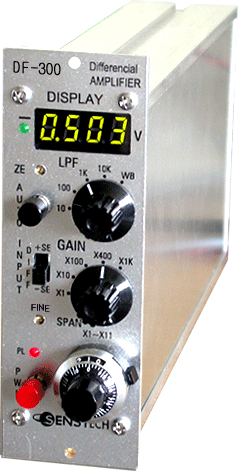

  The ST-DF300 Series high precision, as the sensitivity dynamic signal amplifier independence or majority (Multi-channel) it will put in to the 19" rack case and it will be able to use and it is planned. The voltage signal which is output comes to become rate (GAIN) until 1 ~ 1000 boats, answer back frequency the maximum 100kHz, the Low Pass Filter is becoming at 10Hz ~ 10kHz.

FEATURE

- Fully adjustable calibrated gain from 1 to 1000
- Four-frequency low-pass active filter
- Higher Input Impedance
- Outputs Voltage Display
- Auto Zero set by push button

SPECIFICATION

DIMENSION

※ 괄호 (46)의 치수는 판넬용이며, 주문시 요청바랍니다.

CAD 파일
