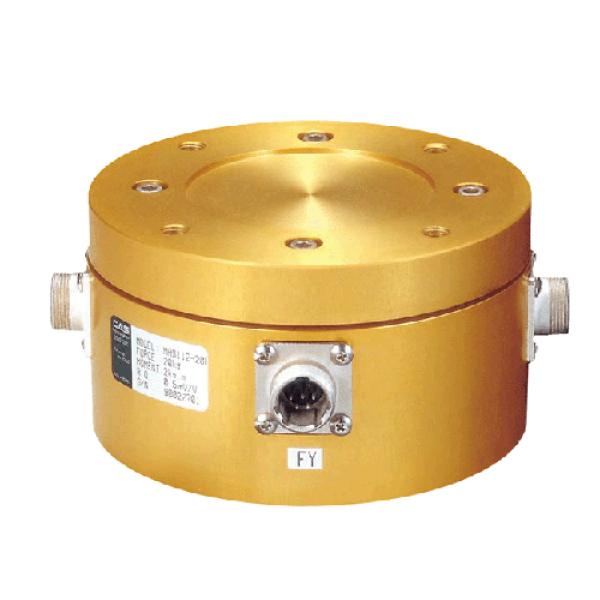

Multi-axis load cell (2axis, 3axis)

⊙FEATURES
Various capacity of detecting up to 6 components
Minimise interaction between components
High accuracy less than 0.5% on each component
All products patent pending

Rated output	0.5mV/V
Nonlinearity	±0.5%FS for each component force
Hysteresis	±0.5%FS for each component force
Allowable over load	±150%FS for each component force
Degree of inter ference (for rated load, allowable moment)	Between components of force measure: ±3% FS/FS By other components of force: ±3% FS/FS
Influence of temperature on zero point	±0.01%FS/℃ for each component force
Influence of temperature on sensitivity	±0.06%FS/℃ for each component force
