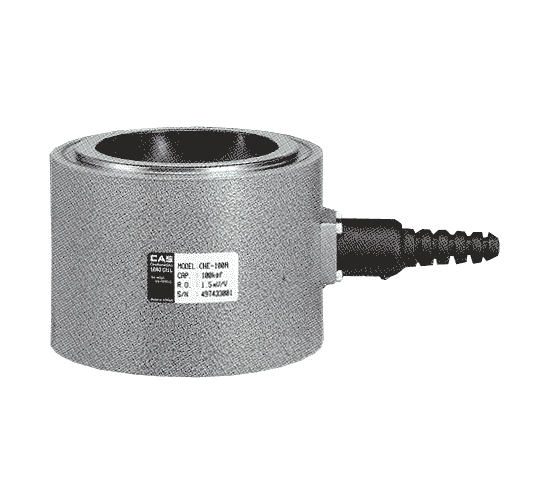

CHE center hole load cell, 20tf - 1000tf

⊙FEATURES
Center hole compression load cell
Safety designed
High reliability

Max. capacity	20, 50, 100, 150, 200tf,300,400,500,1000
Rated output Zoro balance	1.5mV/V(300με at G/F 2.0) 0 ± 0.015mV/V
Combined error Repeatability Creep for 30min. Temperature effect on            Zero Value            Output value	1.0%R.O. 0.2%R.O. 0.03%R.O. 0.03%R.O./10℃ 0.03%R.O./10℃
Excitation            Recommended            Maximum Resistance            Input            Output            Insulation	10V 15V 400 ± 20Ω 350 ± 3.5Ω ＞2,000MΩ
Compensated temperature range Operating temperature range	-10 to +40℃ -20 to +80℃
