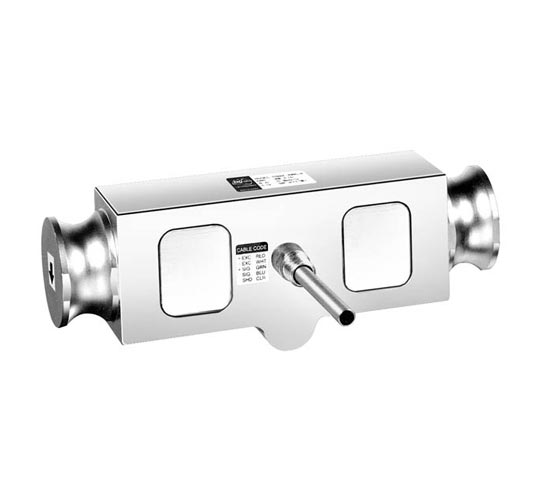

DSB2 truck & tank weighing load cell, 25klb - 40klb

⊙FEATURES
Double end link beam application
NTEP IIIL 10,000M pending
(Handbook 44)
Protection class IP67
Compatible with other sources

⊙OPTIONS NTEP approved class

⊙Material
Nickel plated steel

⊙Cable
Braided shield 4-wire round cable
with Urethane-jacket

Max. capacity	lb	25k, 40k
Rated output Zoro balance	mV/ V mV/ V	3.0 ± 0.0075 0 ± 0.03
Accuracy class		D3	B10(IIIL 10,000M)
Combined error Repeatability Creep for 30min. Temperature effect on            Zero Value            Output value	% % % %/ 10℃ %/ 10℃	0.05 0.03 0.05 0.03 0.02	0.03 0.015 0.02 0.014 0.011
Excitation            Recommended            Maximum Resistance            Input            Output            Insulation	V V Ω Ω MΩ	10 15 800 ± 40 700 ± 7 ＞2,000
Compensated temperature range Operating temperature range	℃ ℃	-10 to +40 -20 to +80
