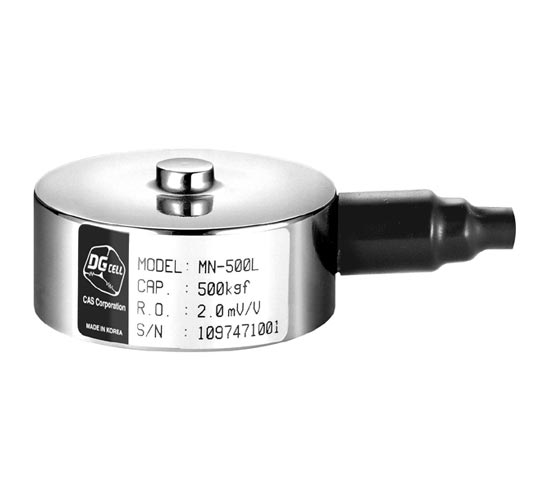

MNC miniature cake load cell, 500kgf - 20tf

⊙FEATURES
Miniature dimension
Compression application
Application for limited space
Protection class IP67

⊙Material
Stainless Steel
Paint finished steel(5tf - 20tf)

⊙Cable
Braided shield 4-wire round cable
with Urethane-jacket

Max. capacity	kgf	50, 100, 200, 500 1tf, 2tf, 5tf, 10tf, 20tf
Rated output Zoro balance	mV/ V mV/ V	2.0 ± 0.005 0 ± 0.06
Combined error Repeatability Creep for 30min. Temperature effect on            Zero Value            Output value	% % % %/ 10℃ %/ 10℃	0.15 0.05 0.03 0.05 0.10
Excitation            Recommended            Maximum Resistance            Input            Output            Insulation	V V Ω Ω MΩ	10 15 420 ± 30 350 ± 3.5 ＞2,000
Compensated temperature range Operating temperature range	℃ ℃	-10 to +40 -20 to +80
