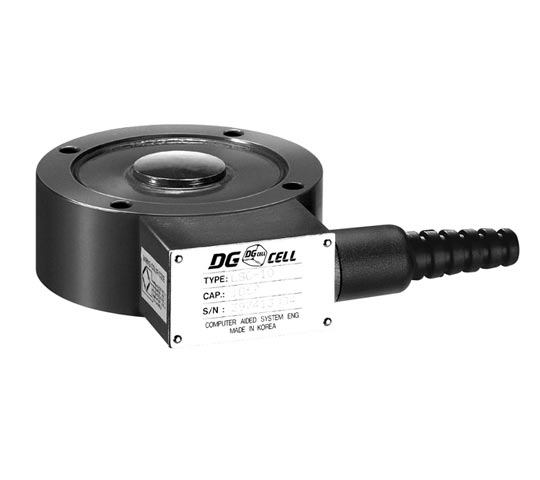

LSC pan cake load cell, 2tf - 100tf

⊙FEATURES
High output(3mV/V)
Hermetically sealed
High reliability against side force
Low profile design
Compression application only

⊙Material
Paint finished steel

⊙Cable
Braided shield 4-wire round cable
with P.V.C-jacket

Max. capacity	tf	2, 5, 10, 20, 50, 100
Rated output Zoro balance	mV/ V mV/ V	3.0 ± 0.0075 0 ± 0.03
Combined error Repeatability Creep for 30min. Temperature effect on            Zero Value            Output value	% % % %/ 10℃ %/ 10℃	0.05 0.02 0.03 0.03 0.03
Excitation            Recommended            Maximum Resistance            Input            Output            Insulation	V V Ω Ω MΩ	10 15 350 ± 3.5 350 ± 3.5 ＞2,000
Compensated temperature range Operating temperature range	℃ ℃	-10 to +40 -50 to +80
