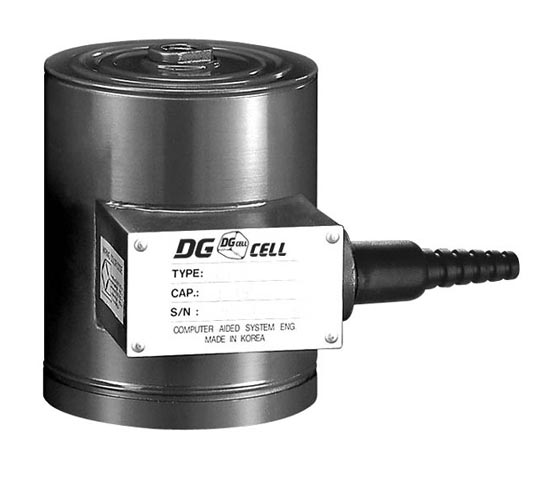

CT canister load cell, 20kgf - 20tf

⊙FEATURES
Tension load cell
Hermetically sealed

⊙OPTIONS
High accuracy grade

⊙Material
Paint finished steel



⊙Cable
Braided shield 4-wire round cable
with P.V.C-jacket

Max. capacity	kgf	20,50,100,200,300,500, 1tf,2tf,3tf,5tf,10tf,20tf
Rated output Zoro balance	mV/ V mV/ V	3.0 ± 0.003 0 ± 0.03
Accuracy class		A	B
Combined error Repeatability Creep for 30min. Temperature effect on            Zero Value            Output value	% % % %/ 10℃ %/ 10℃	0.02 0.01 0.03 0.03 0.03	0.05 0.02 0.03 0.03 0.03
Excitation            Recommended            Maximum Resistance            Input            Output            Insulation	V V Ω Ω MΩ	10 15 350 ± 3.5 350 ± 3.5 ＞2,000
Compensated temperature range Operating temperature range	℃ ℃	-10 to +40 -20 to +80
