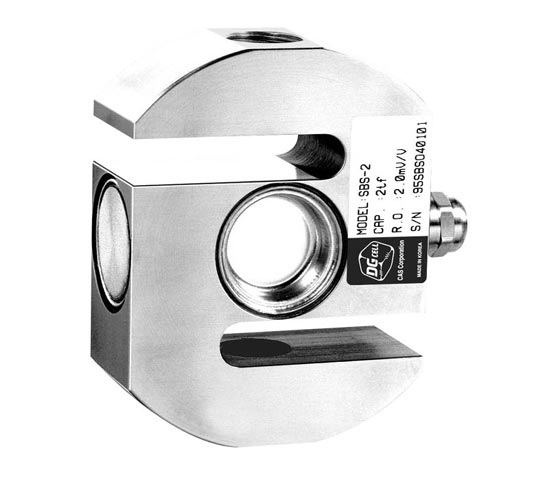

SBS s-beam load cell, 500kgf - 5tf

⊙FEATURES
Stainless steel
Protection class IP67

⊙OPTIONS
Ex ia C T6

⊙Material
Stainless steel

⊙Cable
Braided shield 4-wire round cable
with Urethane-jacket

Max. capacity	kgf	500, 1tf, 2tf, 5tf
Rated output Zoro balance	mV/ V mV/ V	2.0 ± 0.002 0 ± 0.02
Combined error Repeatability Creep for 30min. Temperature effect on            Zero Value            Output value	% % % %/ 10℃ %/ 10℃	0.05 0.01 0.03 0.03 0.014
Excitation            Recommended            Maximum Resistance            Input            Output            Insulation	V V Ω Ω MΩ	10 15 400 ± 25 350 ± 3.5 ＞2,000
Compensated temperature range Operating temperature range	℃ ℃	-10 to +40 -30 to +80
