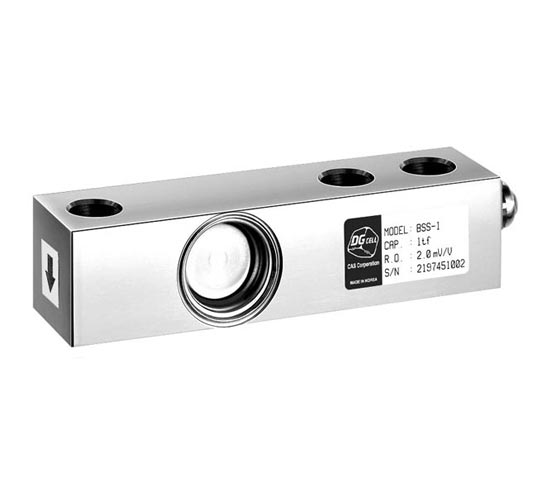

BSS stainless shear beam load cell, 500kgf - 5tf

⊙FEATURES
Stainless steel construction
OIML C3 approved(OIML R60)
Ex s II T4 approved
Protection class IP67
⊙OPTIONS
OIML C3 approved

⊙Material
Nickel plated steel

⊙Mounting

Capacity	Hexagon head-Bolt	Tightening torque
500kgf - 2tf	M12 x 1.75(10.9)	100Nm
3tf - 5tf	M18 x 1.5(10.9)	350Nm

⊙Cable
Braided shield 4-wire round cable
with Urethane-jacket
⊙Mounting Accessory
BSS-TW

Max. capacity	kgf	500, 1tf, 2tf, 3tf, 5tf
Rated output Zoro balance	mV/ V mV/ V	2.0 ± 0.005 0 ± 0.02
Accuracy class		D3	C3
Combined error Repeatability Creep for 30min. Temperature effect on            Zero Value            Output value	% % % %/ 10℃ %/ 10℃	0.03 0.01 0.03 0.028 0.014	0.025 0.01 0.017 0.014 0.011
Excitation            Recommended            Maximum Resistance            Input            Output            Insulation	V V Ω Ω MΩ	10 15 350 ± 3.5 350 ± 3.5 ＞2,000
Compensated temperature range Operating temperature range	℃ ℃	-10 to +40 -30 to +80
