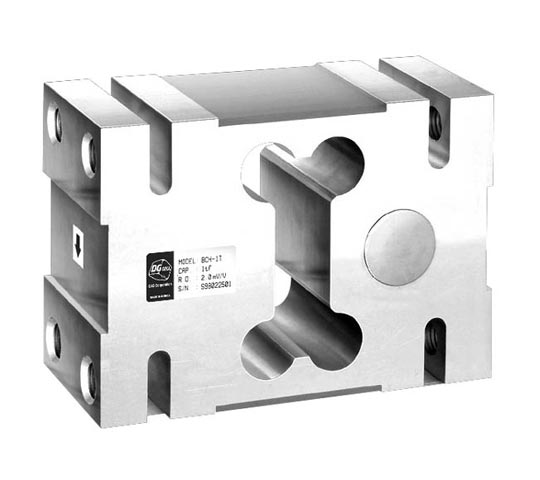

BCH Single point load cell, 500kgf - 2.5tf

⊙FEATURES
Protection class IP65
Large platform application
Off center compensated

⊙Material
Anodized Aluminum

⊙Mounting
Bolt M16 2.0(10.9)
Tightening torque: 255Nm

⊙Cable
Braided Shield 4-wire round cable with Urethane-Jacket

⊙Maximum Platform Size
1200 x 1200mm

⊙Ordering Information
BCH - XX
          ┳
       Capacity in ton

Max. capacity	kgf	500kgf, 1, 1.5, 2, 2.5
Rated output Zoro balance	mV/ V mV/ V	2.0 ± 0.2 0 ± 0.06
Combined error Repeatability Creep for 30min. Temperature effect on            Zero Value            Output value	% % % %/ 10℃ %/ 10℃	0.03 0.01 0.03 0.028 0.014
Excitation            Recommended            Maximum Resistance            Input            Output            Insulation	V V Ω Ω MΩ	10 15 400 ± 20 350 ± 3.5 ＞2,000
Compensated temperature range Operating temperature range	℃ ℃	-10 to +40 -20 to +70
