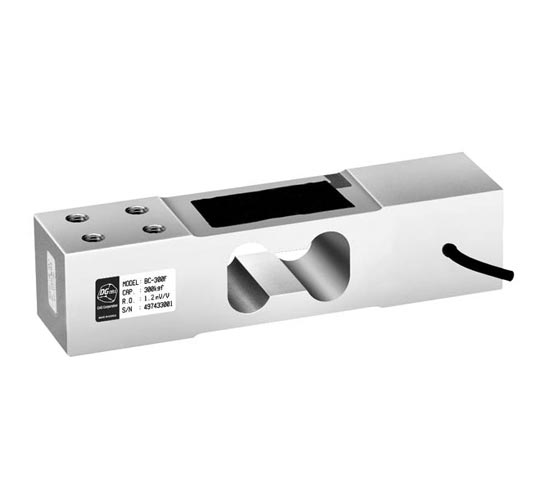

BC-F Single point load cell, 100kgf - 500kgf

⊙FEATURES
Low cost
Off center compensated
Protection class IP65

⊙Material
Anodized Aluminum

⊙Mounting
Socket-head cap screw M6 1.0(10.9)
Tightening torque: 100Nm

⊙Cable
Braided Shield 4-wire round cable
with PVC-Jacket

⊙Maximum Platform Size
600 x 600mm (W L)

⊙Ordering Information
BC - XXXF
        ━┳
     Capacity in kg

Max. capacity	kgf	300, 600
Rated output Zoro balance	mV/ V mV/ V	1.2 (Approx.) 0 ± 0.06
Combined error Repeatability Creep for 30min. Temperature effect on            Zero Value            Output value	% % % %/ 10℃ %/ 10℃	0.03 0.01 0.03 0.04 0.015
Excitation            Recommended            Maximum Resistance            Input            Output            Insulation	V V Ω Ω MΩ	10 15 400 ± 20 350 ± 3.5 ＞2,000
Compensated temperature range Operating temperature range	℃ ℃	-10 to +40 -20 to +70
