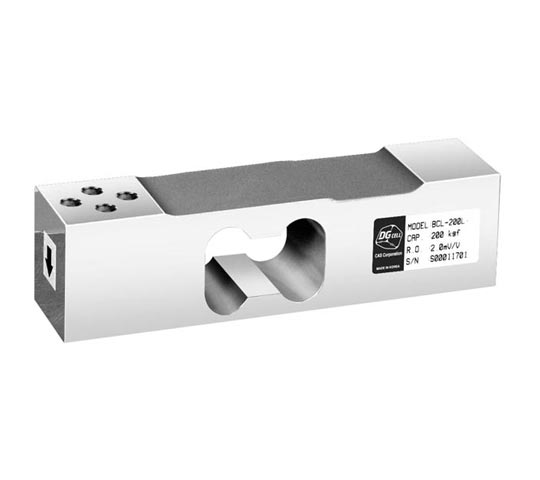

BCL Single point load cell, 60kgf - 200kgf

⊙FEATURES
Low cost Low-profile Off center compensated Protection class IP65

⊙Material
Anodized Aluminum

⊙Mounting
Socket-head cap screw M6 1.0(10.9)
Tightening torque: 14Nm

⊙Cable
Braided Shield 4-wire round cable
with PVC-Jacket

⊙Maximum Platform Size
400 x 400mm

⊙Ordering Information
BCL - XXXL
          ━┳
      Capacity in kg

Max. capacity	kgf	60, 100, 150, 200
Rated output Zoro balance	mV/ V mV/ V	2.0 ± 0.2 0 ± 0.1
Combined error Repeatability Creep for 30min. Temperature effect on            Zero Value            Output value	% % % %/ 10℃ %/ 10℃	0.03 0.01 0.03 0.028 0.014
Excitation            Recommended            Maximum Resistance            Input            Output            Insulation	V V Ω Ω MΩ	10 15 400 ± 20 350 ± 3.5 ＞2,000
Compensated temperature range Operating temperature range	℃ ℃	-10 to +40 -20 to +70
